Fixed Gas Detector
Gas leaks, whether from flammable or toxic gases, are often invisible to the naked eye, posing a serious risk to both the environment and the safety of your personnel and property.
Faulty gas appliances or piping can lead to leaks, which may occur at any location within your facility.
Addressing these risks promptly is essential to safeguarding your site and ensuring regulatory compliance.

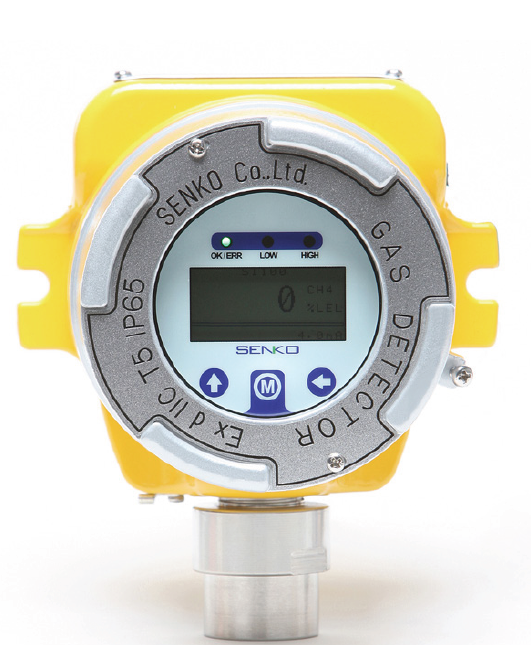

SI-100 Diffusion Type Fixed Gas Detector
Description
The SI-100 is a highly reliable fixed gas detector designed to detect toxic gases, combustible gases, and oxygen deficiency in areas with potential gas hazards. It features a large digital LCD display that not only shows real-time gas concentrations but also provides diagnostic information about the device itself. The SI-100 supports seamless integration with controllers using standard 4-20mA analog output or RS485 digital communication. Its robust aluminum and stainless-steel enclosure ensures superior RFI and EMC compatibility, making it ideal for harsh environments.
Key Features
- Compatible with a variety of sensors
- Simple operation using a magnetic key
- Large, easy-to-read digital LCD display with blue backlight
- Explosion-proof design for enhanced safety
- Water and dust-resistant construction
- Automatic calibration with gas application for convenience
- Long-distance data transmission via 4-20mA output
- Relay contact output signal for flexible integration
SI-100 Diffusion Type Fixed Gas Detector
Description

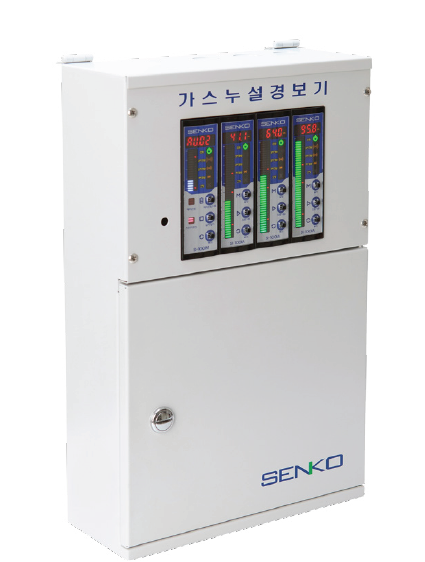

Equipped with a 32-bit high-speed CPU, the SI-100IM delivers fast and accurate data processing across multiple functions. This multi-channel controller consists of a Main Alarm Unit and an Alarm Display Unit, capable of supporting up to 9 channels from a single main alarm unit. The system features a four-digit numerical display, a 40-LED bar graph, and over 95dB audible alarms for comprehensive monitoring. It offers three levels of alarms, fault dry contact relays, and various signal output options, ensuring reliable and complete safety management.
Key Features
- Elegant design with a straightforward, user-friendly structure
- 4-Digit FND digital display for clear readings
- 40-segment LED bar graph displaying in %, PPM, or LEL units
- Icons for Fault, 1st, 2nd, and 3rd level alarms
- 40-segment red arrow LED graph for intuitive visual alerts
- Simple zero-point and standard gas calibration process
- Self-diagnostic mode for enhanced performance monitoring
- Displays calibration frequency for maintenance tracking
